ENDO-SYSTEMS LTD. in Tashkent

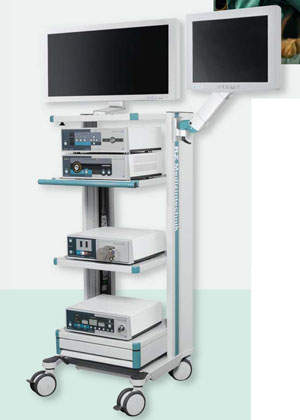

   Video system

consists of:

• Full HD Camera F1
• Xenon cold light source
• Insufflator
• Aquapurator
• Monitor
• Trolls
• Description:

• Full HD resolution 1920 x 1080
• High shutter speed
• Multilingual menu
• Remote control of the camera head
• Insulator

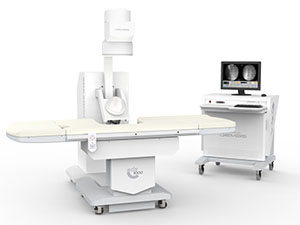

   Compact Digital Radiography system, suitable for small rooms or rooms with limited space. It supports the most demanding clinical application and its simple operation procedure, backed up by a full automatic remote control and a personal computer console enhances its efficiency. Digital imaging system, DICOM 3, PACS, Radiography, the ability to conduct all types of X-ray studies.

System Specification:

• Digital Radiographic System
• TFT Detector - TOSHIBA
• Detector radiation: V-4343R(tentative)
• Image size: 17’ x 17’
• Number of pixels: 3103 x 3086 (9 megapixels)
• Bit depth: 16-bit images in gray scale
• Pipe forward-backward 35cm / Stand From Left to Right: 250cm
• Total rotation around ± 135°
• 23" LCD monitor
• 1Ø6. X-ray tube E7239X
• Heating element tube: 140,000 HU / focal spot: 1.0/2.0mm

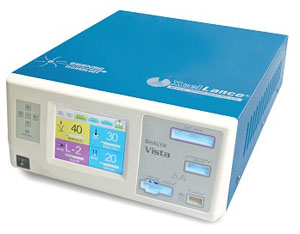

    Electrosurgical Generator

    The Shalya VISTA Electrosurgical Generator provides the necessary high-frequency electrical power for various types of surgical needs of medical technologies. Accessories supplied with the generators are power cords cable and single pedal/double pedal switches. Shalya is equipped with a PREM safety function (Patient monitoring of the return electrode), which ensures maximum safety for the return electrodes. The device is fully microprocessor-controlled to achieve a high degree of clinical accuracy. The device is equipped with a built-in self-diagnosis function, which ensures that the generator with accessories is safe to operate and displays error codes, if any.

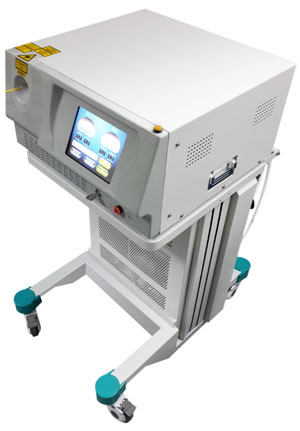

Holmium medical laser

Holmium medical laser is one of the types of medical equipment of light-mechanical and electrical integration. The holmium medical laser is the newest among laser therapy equipment, due to its unique mechanism and wavelength, it uses irreplaceable advantages in the field of minimally invasive surgery. The laser energy is controlled by a closed loop, the output energy of the laser is strictly controlled, small stones can be strictly removed.

The device can be used in the following main types of operations:

1. Urological operations

• kidney stones
• ureteral stones
• polyp-encapsulated stones
• bladder stones

2. Prostate Enucleation (HoLEP)

3. Spine surgery

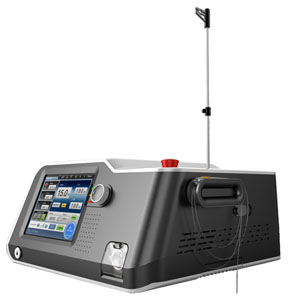

Diode laser

• Vascular Surgery (EVLT)
• ENT Surgery / Snoring
• Thoracic surgery
• Abdominal and Digestive Surgery
• Proctology
• Gynecological surgery
• Neurosurgery (PLDD)

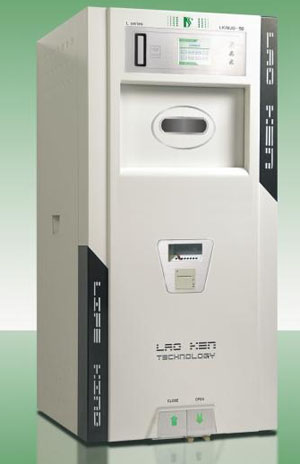

Low-temperature plasma sterilizers

Low-temperature plasma sterilizers represent a new generation of sterilization equipment. Sterilization in them is carried out in a dry atmosphere at a temperature of 36 ° C. As a sterilizing agent, vapors of an aqueous solution of hydrogen peroxide and low-temperature plasma are used. This method of sterilization is used as an alternative to low-temperature gas sterilization with ethylene oxide and sterilization in formaldehyde vapor.

    Using this method will make it possible to sterilize the internal surfaces of the channels of medical devices, for example endoscopes, with a diameter of up to 1 mm and a length of up to 2500 mm. Plasma sterilizer is effective for sterilization of products consisting of interconnected parts of materials dissimilar in physical and chemical characteristics, for example, syringes, prostheses, transplants. Plasma sterilization is effective against all known microorganisms, including Gcobacillus stearothermophilus, Bacillus atrophaeus, Bacillus pumilus, Pseudomonas aeruginosa, Escherichia coli, Serratia marcescens, Candida albicans, Candida parapsilosis, Burkholderia cepacia.

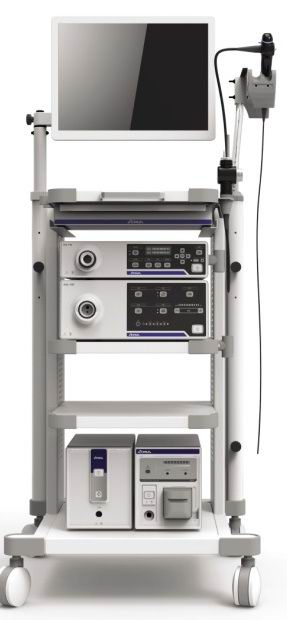

   Videogastroscope

included:

    VME 2800 video processor
    Cold light source VLS 150-1
    Gastroendoscope
    Video proof
    Monitor


Characteristic:

    Video Signal Outputs: RGB, S-Video, Composite, DVI (Digital Visual Interface)
    Image enhancement
    Easy Operation
    Tone adjustment Color: "R", setting "B": ± 50steps
    Brightness adjustment: "Y" adjustment: ± 50steps
    Freezing: Endoscopic images can be frozen
    Metering mode: You can select the exposure metering mode.
    White balance adjustment
    Field type: 140 °
    Depth of view: 3-100mm
    Distal end diameter: φ9.6mm
    Plug-in tube diameter: φ9.6mm
    Tool channel diameter: φ2.8mm
    Working length: 1050mm
    Total length: 1350mm
    Lighting: 10000lx
    Water capacity: 40ml/min
    Air capacity: 800ml/min
    Suction power: 400ml/min


There is also a Video Colonoscope, a Videobronchoscope, a Fibragastroscope

Extracorporeal percussive lithotriptor

Extracorporeal Impact Lithotriptor (ESWL) is the latest and innovative technology in which high-energy shock waves pass through the body, directly to the stone to crush it so that it can be easily excreted in urine. The non-surgical method of treatment can be replaced by simple and less painful outpatient treatment. Reducing the patient's stay in the medical facility - treatment can be completed in a short time (3-40 minutes), without the need for inpatient treatment. Patients can return to normal life 1 hour after the manipulation.

Technical specifications:
- No need for anesthesia
- Powerful and dynamic shock wave range
- Image localization high X-ray performance
- Simple and ergonomic design
- Maintaining a database for the patient's medical history
- 2 Windows in 24-inch wide monitor
- On both sides of the movement of the C-arc to simplify the attachment of the shock wave
- Remote control of 6 way countertop

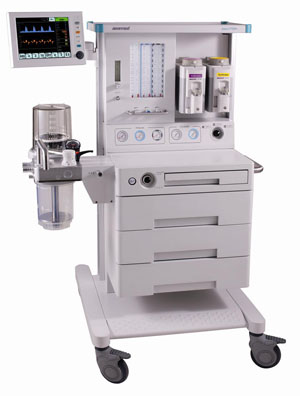

Anesthesia machine

Anesthesia machine, developed by the most modern, technical technologies allows anesthesia and ventilation of newborns, children and adult patients. Built-in modern respirator with a colored liquid crystal screen, continuous provision of anesthetic gases.


Ventilation parameters:

    Respiratory volume: 20 - 1500 ml
    Respiratory rate: 2 - 100 breaths /min
    Inhale / exhale ratio: 4:1 - 1:8
    Trigger sensitivity: 1 - 15 l/min
    High pressure: 5 - 70 cm H2O
    Pause on inspiration: 5 - 60%

Ultrasonic Salpel

SCOPE OF APPLICATION:
    General surgery, urology, coloproctology, gynecology, otolaryngology, neurosurgery, other open and endourological, laparoscopic interventions.

    Ultrasonic Harmonic scalpel is a device based on ultrasonic technology. Ultrasound energy allows precision cutting and coagulation with minimal lateral thermal damage to surrounding tissues. The device allows for very precise manipulations in confined spaces. The use of an ultrasonic Harmonics scalpel reduces the need for frequent tool changes. Ultrasonic exposure reduces the degree of charring and drying of tissues, while improving visualization due to the slight formation of smoke.

    The principle of operation of the ultrasonic scalpel is based on the transformation of electrical energy coming from the generator into mechanical energy, thanks to piezoceramic elements in the handle of the element. High-frequency mechanical vibrations are transmitted to the nozzle blade, as a result of which the tip of the working nozzle moves strictly in one parallel direction with a frequency of 55500 vibrations per second. Due to these high-frequency vibrations, the ultrasonic scalpel performs 3 types of effects on tissues: dissection, coagulation and cavitation.

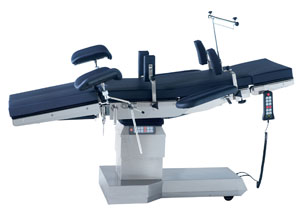

    The electric surgical operating table is mainly designed for general surgical operations. This electric table is operated electrohydraulically. Various actions are carried out using the remote control. The hydraulic pump controls the height, Trendelenburg, REV-trend, rear panel.

Technical parameters:

Length 2000 ± 100 mm
Width 500 ± 20 mm
Table height 580 ± 20 mm
Height adjustment (580-850) ± 20 mm
Lifting capacity 200 kg

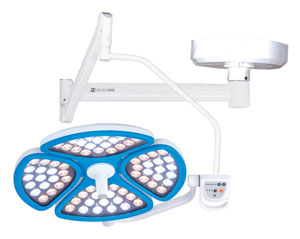

LED operating lamp
The LED operating lamp is suitable for lighting surgical operations. The LED shadowless operating lamp is considered an LED light source, effectively reduces the temperature. LED shadowless lamp with a long-life work bulb. Lamp handle with gimbal structure, with multiple ranges of motion
Normal working condition:
Ambient temperature: 5°~40°
Relative humidity: ≤80%
Atmospheric pressure: 860hpa ~ 1060hPa
Supply voltage: 220V ± 22V 50 / 60Hz ± 1 Hz
Power consumption: KL-LED • STZ4 120VA
Lighting: 140,000lx≥Ec≥40,000lx
Color temperature: (3500~4500) ± 500
Total Lighting: ≤1000w/m2
Total Lighting /Illumination: ≤6mW /m2lx
Spot diameter (D50), mm: 110 mm ± 35 mm
Light beam depth: ≥700mm
Color rendering index: 100≥Ra≥85
